Wallbox EV charger 20KW Wall-mounted DC Charging Station Column Outdoor
JUBILEE relies on new DC charging pile technology to solve cost, convenience, installation convenience and cost problems for customers. When electric vehicles are charged using direct current (DC) with up to 20-40 kW of power, charging speeds are twice as fast as conventional alternating current (AC) chargers.
JUBILEE DC charging pile transmits electric energy directly to the power battery through a standard DC charging gun (also used for fast charging and ultra-fast chargers), which can significantly shorten charging time.
Model Parameter Comparison
| Power | 20KW | |||
| Model No. | DC1000-20K-FC2107 | DC1000-20KW-E1 | DC1000-20KW-A1 | |
| Function | Technical Parameters | Type GB/T | Type CCS2 | Type CCS1 |
| Operation background | OCCP 1.6 | |||
| Communication mode | CAN communication /PLC (customized) | |||
| Optional Function | Optional Ethernet, GPRS, 4G | |||
| Charging protocol | DIN70121 | |||
| Charging mode | IEC 61851 charging mode 4 | |||
| Payment Method | OCPP 1.6 / RFID Card | |||
| Screen | 7-inch LCD | |||
| Current harmonic (THDI) | ≤5% | |||
| Efficiency | ≥95%(full load) | |||
| Heat Dissipation Mode | Air Cooling | |||
| Communication protocol | IEC 62196-3(European Standard) | ISO15118/OCCP1.6(American standard) | ||
| Guns | Length 5m, single gun GB/T (2 guns customized) | Length 5m, single gun CCS2 (2 guns customized) | Length 5m, single gun CCS1 (2 guns customized) | |
| Input | Input Voltage | Three-Phase 380V±10%, 3 + N + PE | Three-Phase 480V±10%,3 + N + PE | |
| Output | Output voltage | 200-1000VDC 50/60Hz(3 + N + PE) | ||
| Output current | 0 ~ 80A (single gun) | |||
| Environment | Scenes | Outdoor, Park, Power station etc. | ||
| Noise | & lt; 65dB | |||
| Working Height (m) | <2000 | |||
| Operating Temperature | -20~50℃ | |||
| Product Size and N.W. | 473*249*653mm; 473*280*1711 mm (with Column) | |||
| Box Size and G.W. | 478 * 250 * 123mm | |||
| Protection and Safety | Certifications | CE/IEC/EMC/SGS | ||
| Impact Protection | IK10 | |||
| Multi-protection | Overvoltage protection, Undervoltage protection, Grounding protection, Lightning protection, Leakage protection, Flame retardant protection, Overcurrent protection, Intelligent temperature control protection, Input shutdown protection | |||

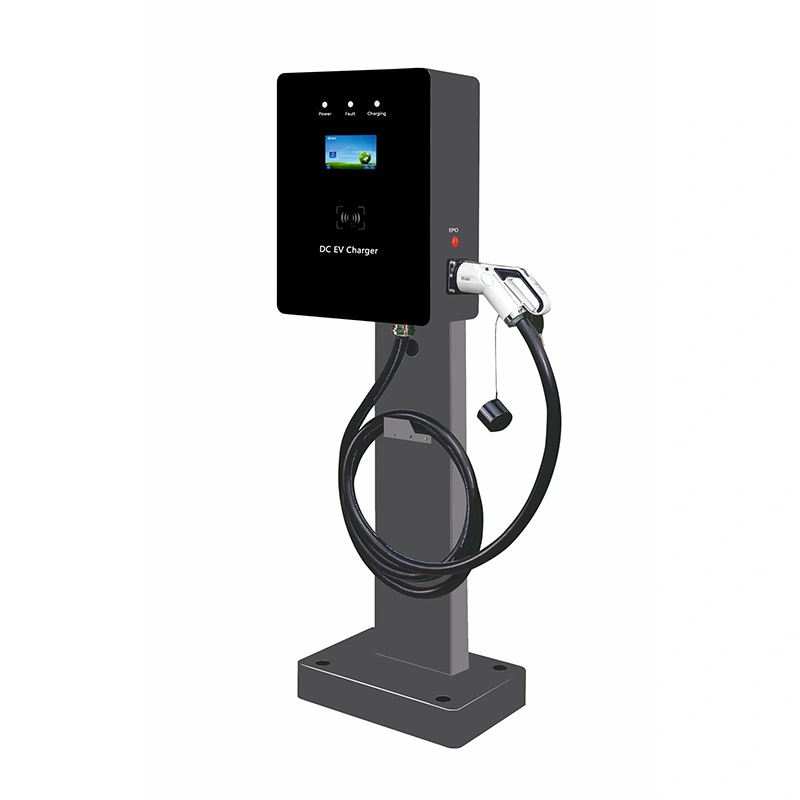

JUBILEE DC Wall-mounted Charging Station
JUBILEE DC charging station has flexible charging and five-speed switching functions, which is more energy-saving and environmentally friendly.
4.3-inch color touch screen, friendly visual interface, 14-layer protection system, compatible with mainstream intelligent charging management platforms and comprehensive communication ports such as CAN, Ethernet, RS485, RS232 and GPRS.
Benefits Of Partnering With BESEN EV Chargers
● 18 years manufacture experience in EV charger products and there are already mature product that has been market-tested, with stable performance and minimal after-sales issues. Dealers can focus on sales.
● The product has various models such as Basic, APP, RFID, Load Balancing, etc. and can wall-mounted and column installation, meeting all the usage needs of end customers for AC charging and suitable for all applicable scenarios.
● The product have passed certifications such as TUV, CE, EMS, FCC, UL, etc., enabling compliant sales in global region.
● Strong production capacity, with the ability to produce 4000+ EV Wallbox EV chargers per week, enabling quick delivery.
● With 18 years rich experience in OEM, JUBILEE can efficiently provide appointed branded customization services and solution for customers.
● Perfect after-sales support service and warranty files, resolving customer issues promptly.
Eco-Friendly Safe Packaging Measurement
The packaging choose the safest and most compact packaging method, which is convenient for customers to transport and store, and can effectively protect the product from damage during transportation. The design and appearance of the packaging box can be customized.
JUBILEE Accept ODM/OEM Customization about EV Charging Solutions
JUBILEE has 18 years of professional ODM/OEM experience. It not only provides customers with customized electric vehicle charging station products, but also provides customers with complete solution customization. We understand that each customer has different customization requirements, and we are committed to helping and providing customized solutions that meet your brand needs through our professional technology and meticulous service.
Our experienced team of engineers and technicians are equipped with the latest technical equipment and expertise to help you create a custom electric vehicle charging solution that meets your exact specifications. From product design to manufacturing to after-sales service, we work closely with our customers to ensure their vision is realized.
After-sales service
We will provide an after-sales warranty file which is much longer than the basic time of industry standards. If customers need to extend the warranty time, they can apply for confirmation.
● 7*24h after-sales on line service.
● Remote assistance and online guidance for installation or maintenance if necessary.
● We could offer damaged parts replaced free of charge during the warranty period.
● For long-term cooperated customers, we can go to the site for installation and annual on-site after-sales maintenance.
