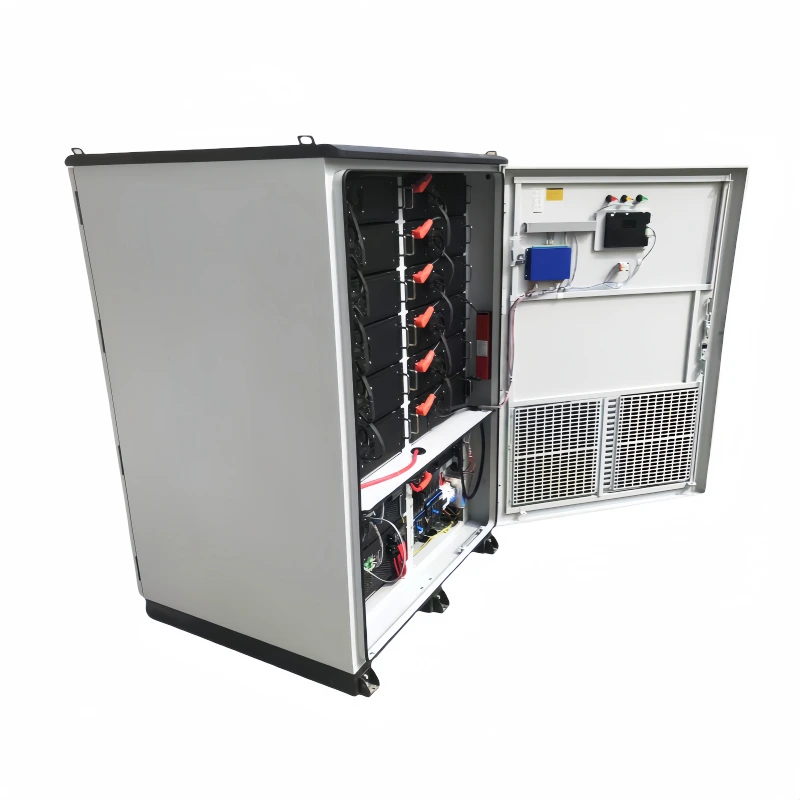

50KW 60KW 100KWH 120KWH All In One ESS Commercial High Voltage Battery Storage with Hybrid Inverter System
Our 50KW, 60KW, 100KWH, and 120KWH All-In-One ESS Commercial High Voltage Battery Storage System combines a LiFePO4 battery pack with a hybrid inverter system, smart BMS, MPPT, PCS, EMS, fire fighting protection, air cooling system, and generator port for reliable and efficient energy storage. This integrated solution is perfect for commercial applications seeking sustainable and dependable power supply.
Model Parameter Comparison
| Model | 100KWH-50KH3M-HP1 | 120KWH-50KH3M-HP1 |
| Battery | ||
| Rated Energy | 100KWH | 120KWH |
| Normal Voltage | 512V | 614.4V |
| Battery Capacity | 200AH | 200AH |
| Charging Current | 75A (Max. 125A) | |
| Discharging Current | 150A | |
| PV | ||
| Max. Power | 70KW | |
| Max. PV Voltage | 850VDC | |
| MPPT Voltage Range | 200-800VDC | |
| Max. PV Current | MPPT*4 30A*4 | |
| AC(on/off grid) | ||
| Rated Power | 50KW | |
| AC Voltage | 400VAC | |
| AC Model | L1/L2/L3/N/PE | |
| Max. AC Current | 72A | |
| Rated Frequency | 50HZ/60HZ | |
| Switching Time | <20ms | |
| General Parameter | ||
| Communication Type | RS485/WIFI | |
| IP Grade | IP54 | |
| Operating Temperature | -10～55℃ | |
| Storage Temperature | 25～55℃ | |
| Humidity Range | 5～95% | |
| Altitude | <3000m | |
| Protection and System | Air Conditioner Protection of Battery, Fire Protection of Aerosol, Intelligent Air Cooling System of PCS, EMS System | |
| Warranty | 5-10 Years | |
| OEM/ODM | Accepatable | |
| Size/mm | 1100*1020*1600mm | 1100*1020*1850mm |
| Weight/kg | 1200kg | 1400kg |
| Application | Commercial use, Factories, hotels, supermarkets, companies, schools.... | |
Introduction Description
JUBILEE is a professional manufacturer of battery packs and lithium-ion battery packs. We have the ability to provide a vertical supply chain, from a single cell to a battery pack/module, to a complete power solution with BMS. We provide customized OEM battery packs, assemble the battery with wiring, fuses and plastic covers, and all battery wires are connected to PCB plugs or built-in BMS.
Our 50KW 60KW 100KWH 120KWH All In One ESS Commercial High Voltage Battery Storage with Hybrid Inverter System offers unmatched reliability and efficiency. With 18 years of experience in the battery industry, our integrated system includes BMS, PCS, EMS, fire fighting system, and air cooling system. Utilizing A grade EVE brand battery cells, our product ensures high cycles and safety with a 5-10 year warranty. Widely used in various commercial high-power electricity fields.
● Application scenario: Commerical Use, Factories, Hotels, Supermarkets, Companies, Schools .....
● Product selection: 50kw/60kw 100kwh/120kwh or customized
Advantages
● Strong compatibility, safe and reliable.
● Strong Waterproof: IP54 and no matter rain or wet which don't bring damage to the circuit.
● BMS Protection board: Streamlined shell design,plus smart BMS to evaluate, manage and protect the battery.
● Outdoor lighting：Can be applied in any commercial high voltage and bigger power places and situations.
